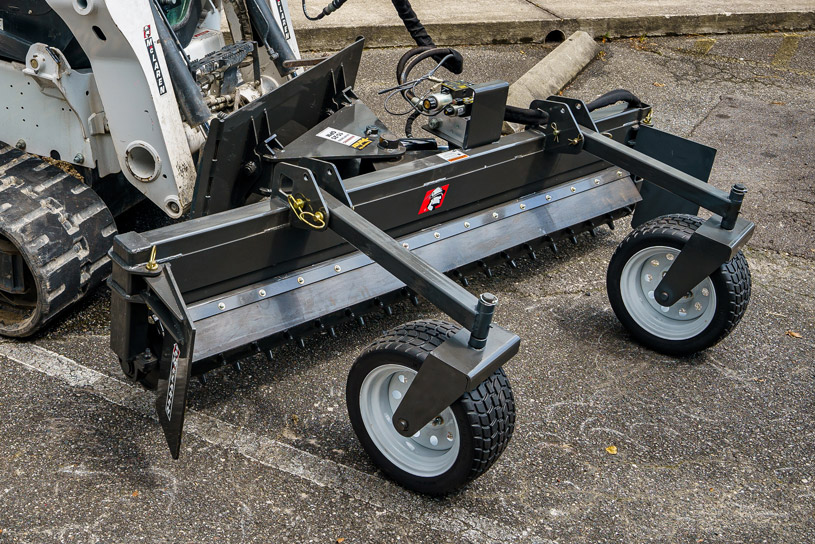

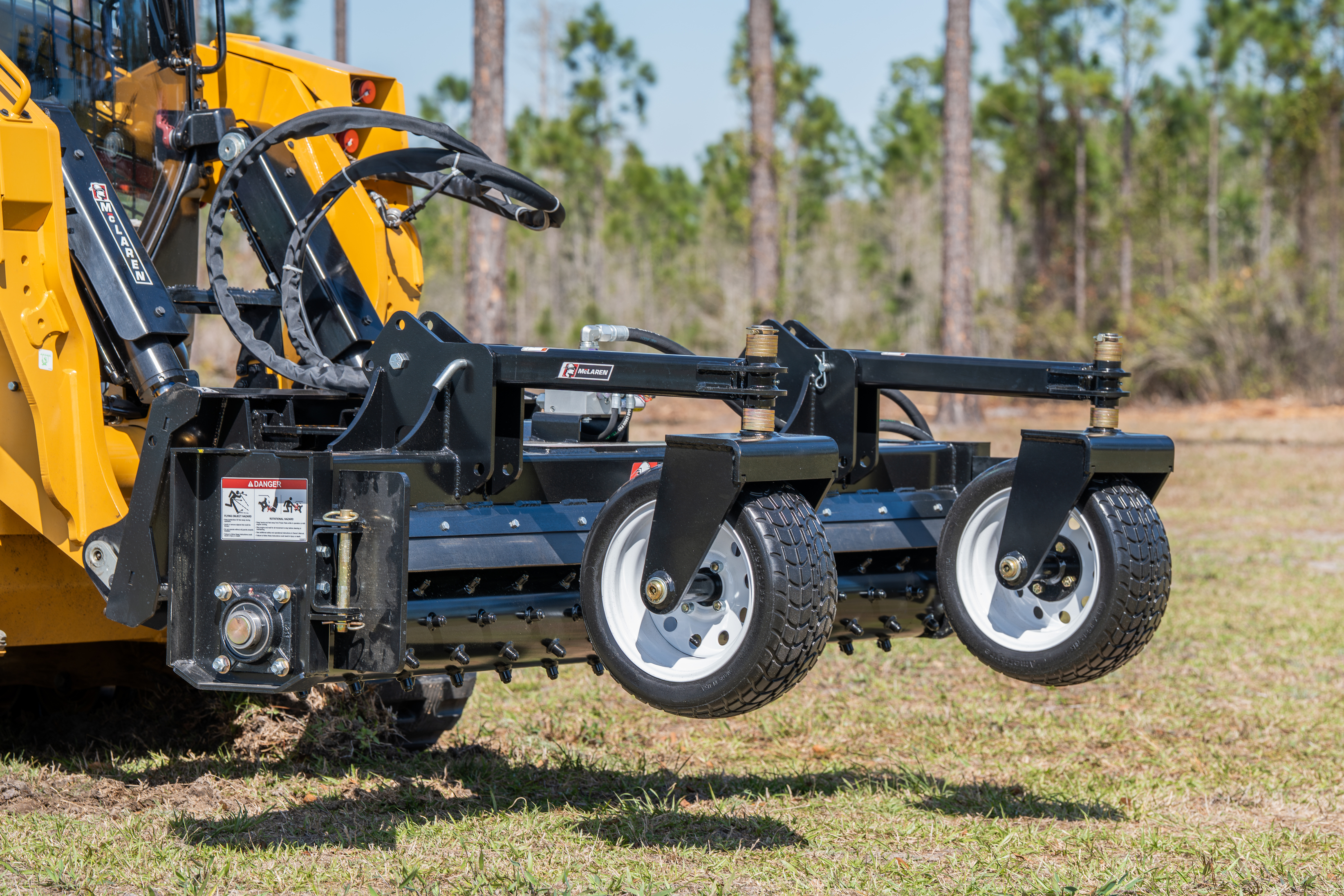

Skid Steer Power Rake
Prices start from: $13,500

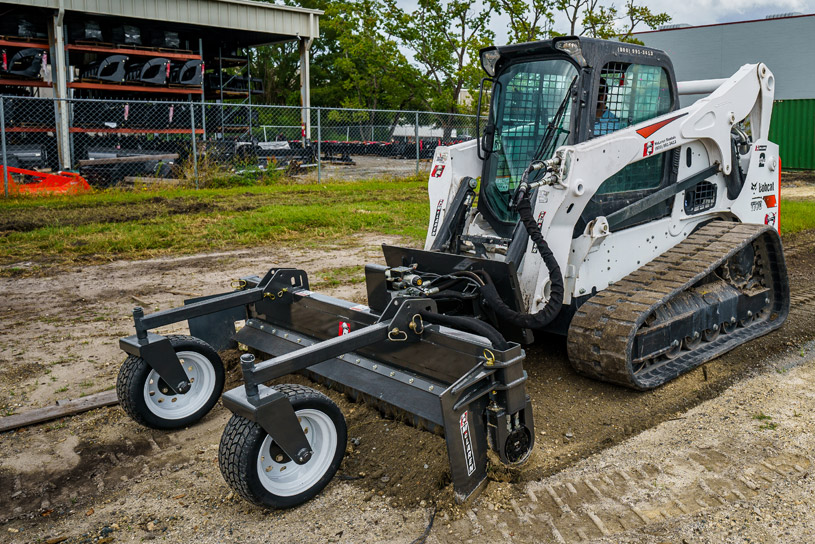

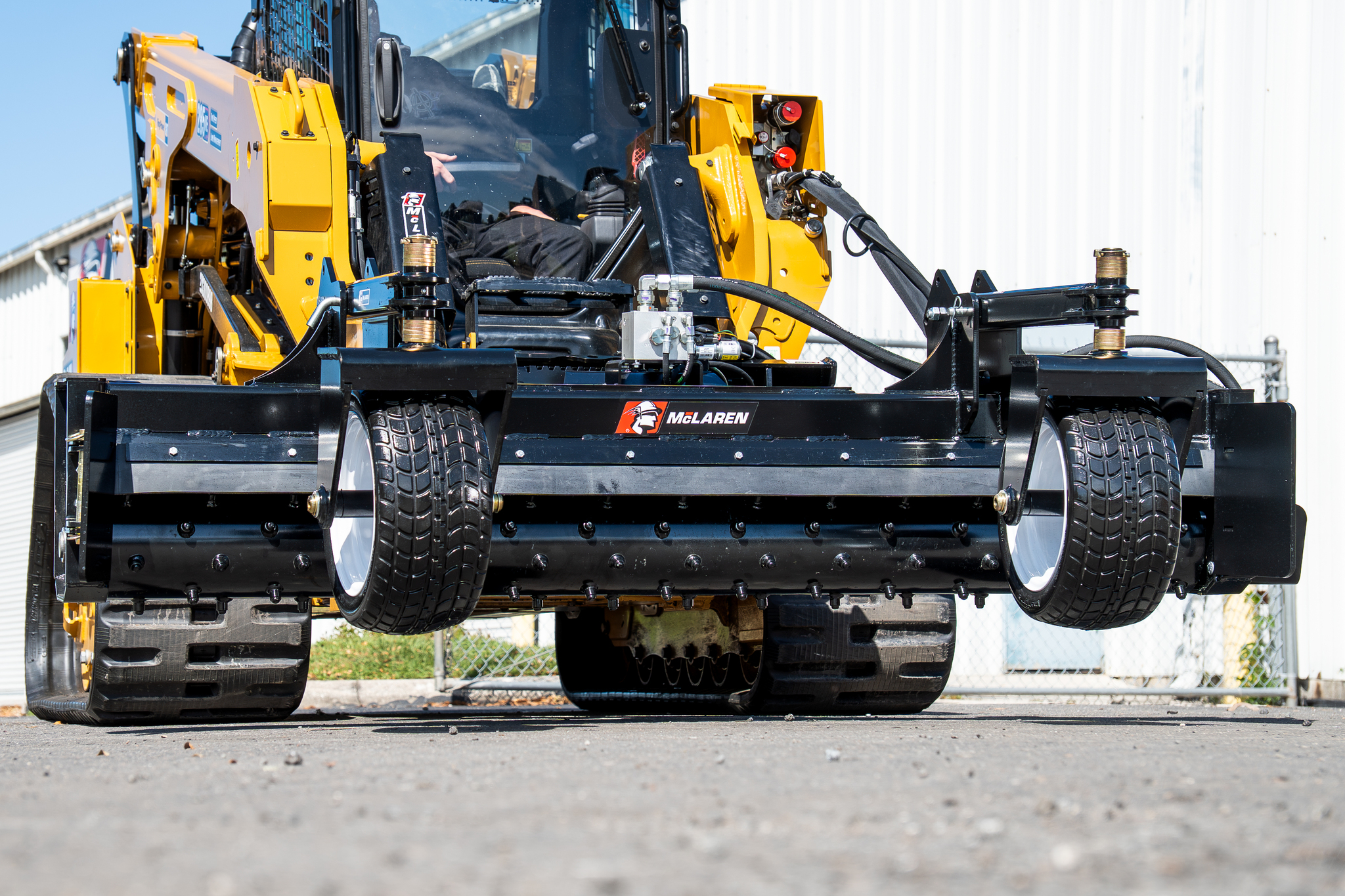

McLaren’s Skid Steer Power Rake is built to prep, level, and condition soil with more torque and less maintenance than chain drive designs. Designed for landscaping and ground preparation applications, this Power Rake, often referred to as a Harley Rake, delivers a professional finish while standing up to demanding job-site conditions.
McLaren’s skid steer Power Rake automatically follows terrain with a 22° floating design that maintains full down pressure for consistent surface conditioning. The direct drive system features a direct drive motor that provides bi-directional drum rotation, while round carbide teeth deliver a superior seedbed with greater durability and consistency than pointed teeth.
This skid steer Power Rake is available in 72", 84", and 90" working widths and is designed for machines with 15-25 GPM hydraulic flow and greater than 1,500 lb. loader operating capacity.
Built for control and versatility, the Power Rake features an adjustable barrier to manage material flow and finish quality, removable side plates that mount to the front or back for material containment, and flat-proof tires with quick height adjustment in 1/2" increments. Wheel arms flip up for storage, and the rake features a hydraulic angle adjustment for greater operating flexibility.
Available sizes: 72”, 84”, and 90” Width
Key Features
- 22° Floating Design: Automatically follows terrain while maintaining full down pressure.

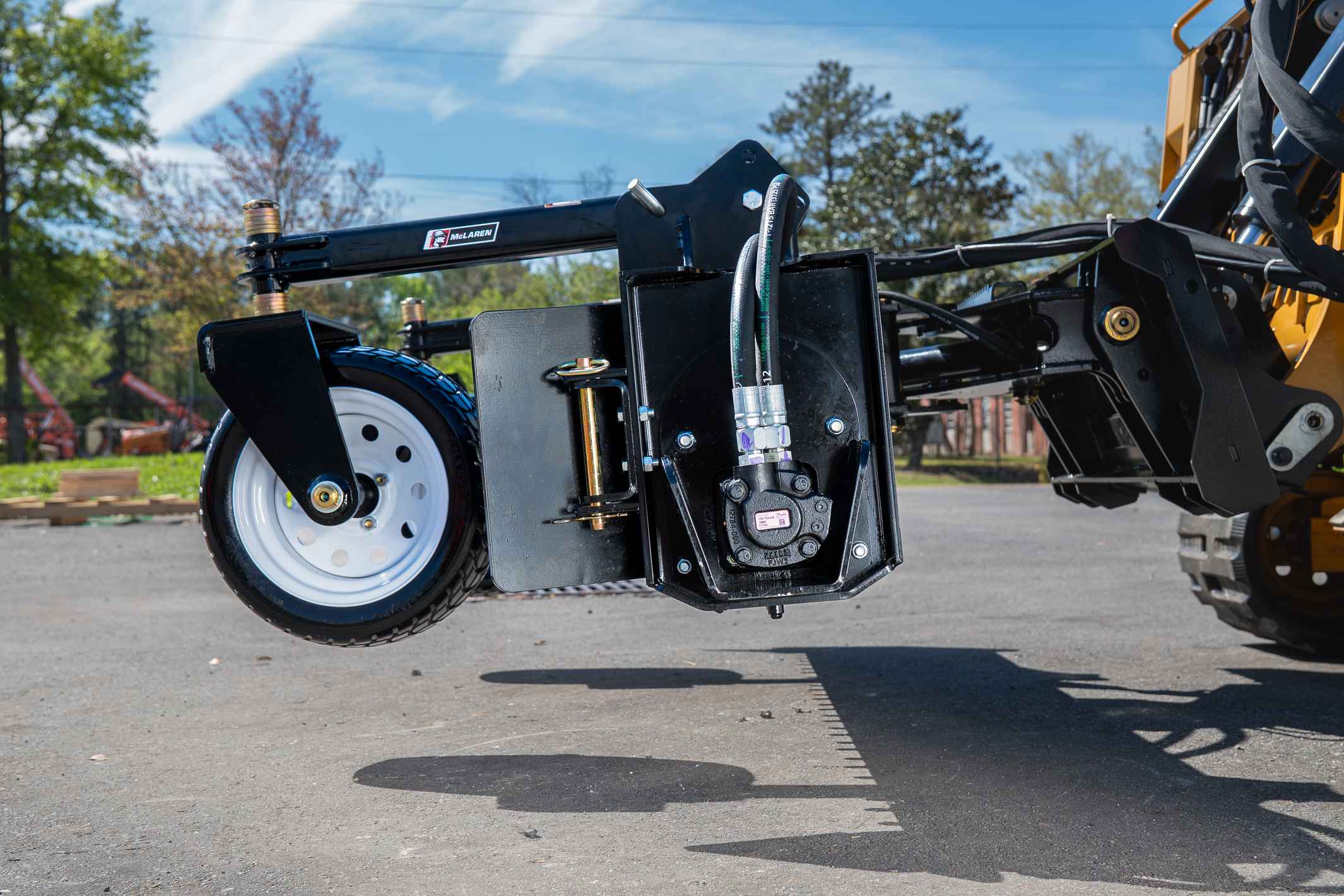

- Direct Drive Motor: Powerful direct drive motor provides bi-directional drum rotation.
- Round Carbide Teeth: Deliver a superior seedbed with greater durability and consistency than pointed teeth.
- Adjustable Barrier: Controls material flow and helps improve finish quality.
- Removable Side Plates: Mount to the front or back for better material containment.

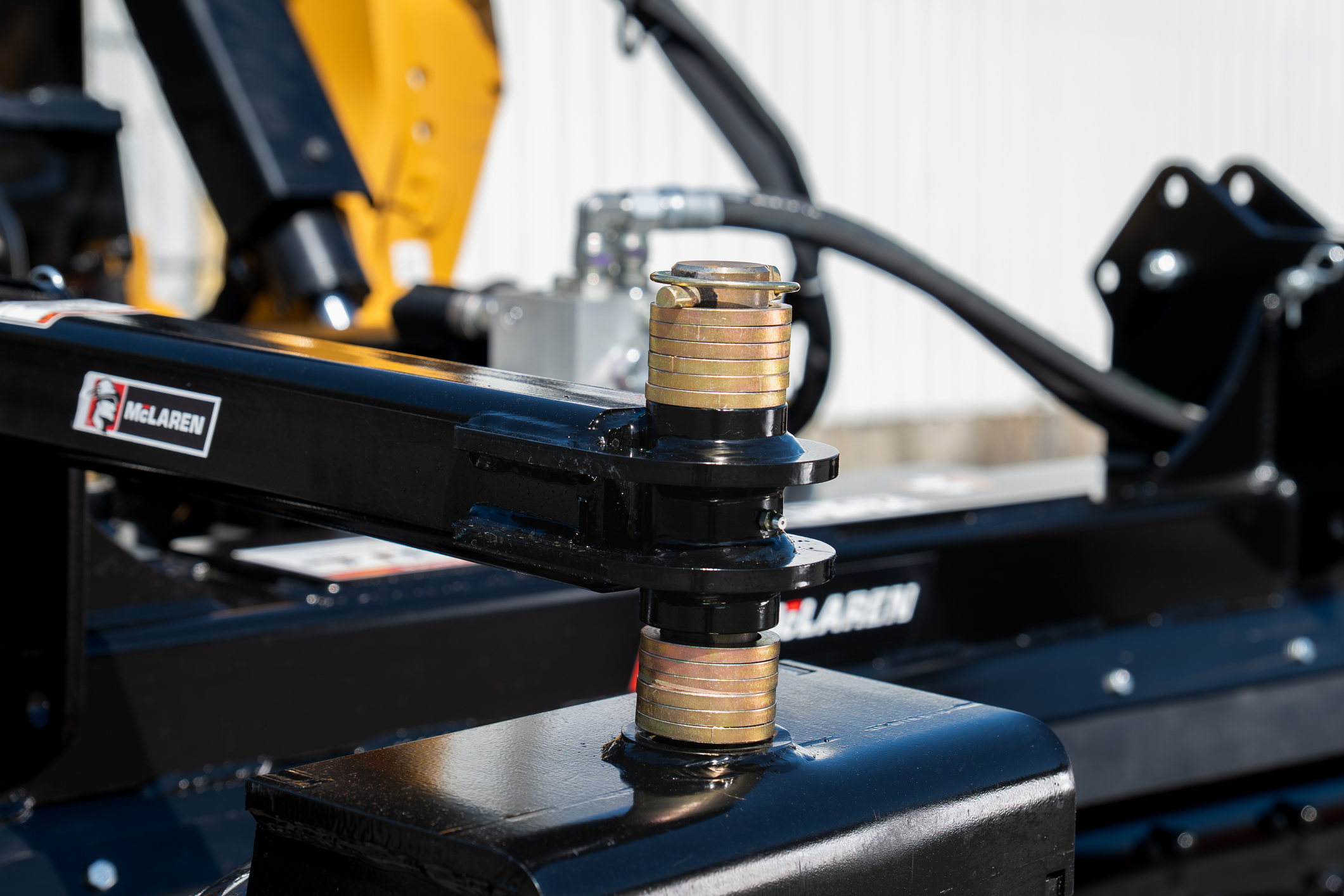

- Flat-Proof Tires: Quick height adjustment in 1/2" increments with wheel arms that flip up for storage.

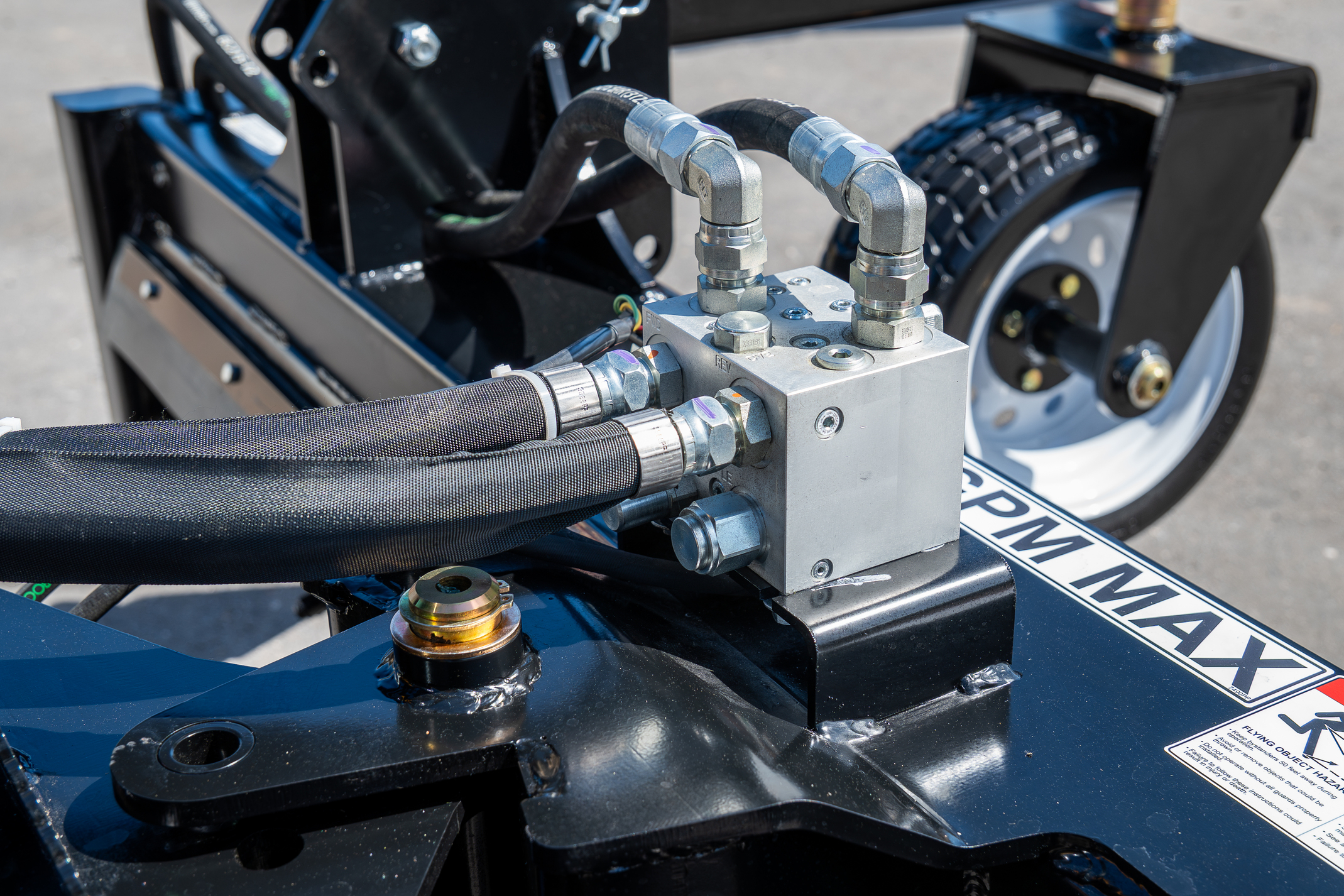

- Hydraulic Angle: Angle the rake left or right for better control across different applications.
Application
- Soil conditioning
- Land leveling
- Surface preparation
- Material blending
- Landscaping finish work
- Seedbed preparation
What's Included
- McLaren Skid Steer Power Rake
- Owner’s Manual
Specifications
| Model | HPR-72 | HPR-84 | HPR-90 |
| Working Width, Straight (Inches) | 72.0 | 84.0 | 90.0 |
| Working Width, Full Angle (Inches) | 66.8 | 77.9 | 83.4 |
| Overall Width (Inches) | 81.0 | 93.0 | 99.0 |
| Overall Height (Inches) | 26.0 | 26.0 | 26.0 |
| Overall Depth (Inches) | 60.0 | 60.0 | 60.0 |
| Drum Diameter (Inches) | 7.5 | 7.5 | 7.5 |
| Number of Teeth | 101 | 118 | 127 |
| Float Link Angle (degrees) | 22 | 22 | 22 |
| Hydraulic Angle (degrees) | 25 | 25 | 25 |
| Recommended Flow Rate (GPM) | 15 - 25 | 15 - 25 | 15 - 25 |
| Approximate Weight (lbs) | 915 | 960 | 985 |
| Recommended Loader Capacity (lbs) | Greater than 1500 | Greater than 1500 | Greater than 1500 |
